1/4‴ MNPT MALE M-STYLE KWIK-CHANGE® COUPLER

تربط فنتق  الهواء من طراز Milton M أدواتك للتشغيل الآمن وتدفق الهواء الكافي. تتوفر  فنتقات Milton الهوائية من طراز M بعدة خيارات ، بما في ذلك إصدارات KWIK-CHANGE الشهيرة ، والتي تتيح التشغيل بيد واحدة ، بالإضافة إلى إصدارات فنتقات الضغط بأمان. يتميز العديد بأجسام نحاسية وأكمام ، لكن فنتقات ميلتون من نوع الدفع تتميز بواقيات سحب فولاذية لمنع فك الاقتران العرضي. تشتمل فنتقات الهواء من طراز Milton M على أختام Buna-N. اختر التكوين المطلوب لتطبيق هوائي.

Brand:Milton Industries

Manufacturer"s Part Number:S-716

Part Type:Air Tool Fittings

Product Line:Milton M-Style Air Couplers

Air Tool Fitting Style:M-style

Fitting Material:Brass

Fitting Finish:Natural

Quantity:Sold individually.

Milton M-style air couplers connect your tools for safe operation and sufficient airflow. Milton pneumatic M-style couplers are available in several options, including their popular KWIK-CHANGE versions, which allow for one-handed operation, as well as their push-button safety coupler versions. Many feature brass bodies and sleeves, but Milton push-type couplers feature steel drag guards to prevent accidental un-coupling. Milton M-style air couplers include Buna-N seals. Choose the configuration needed for your pneumatic application.

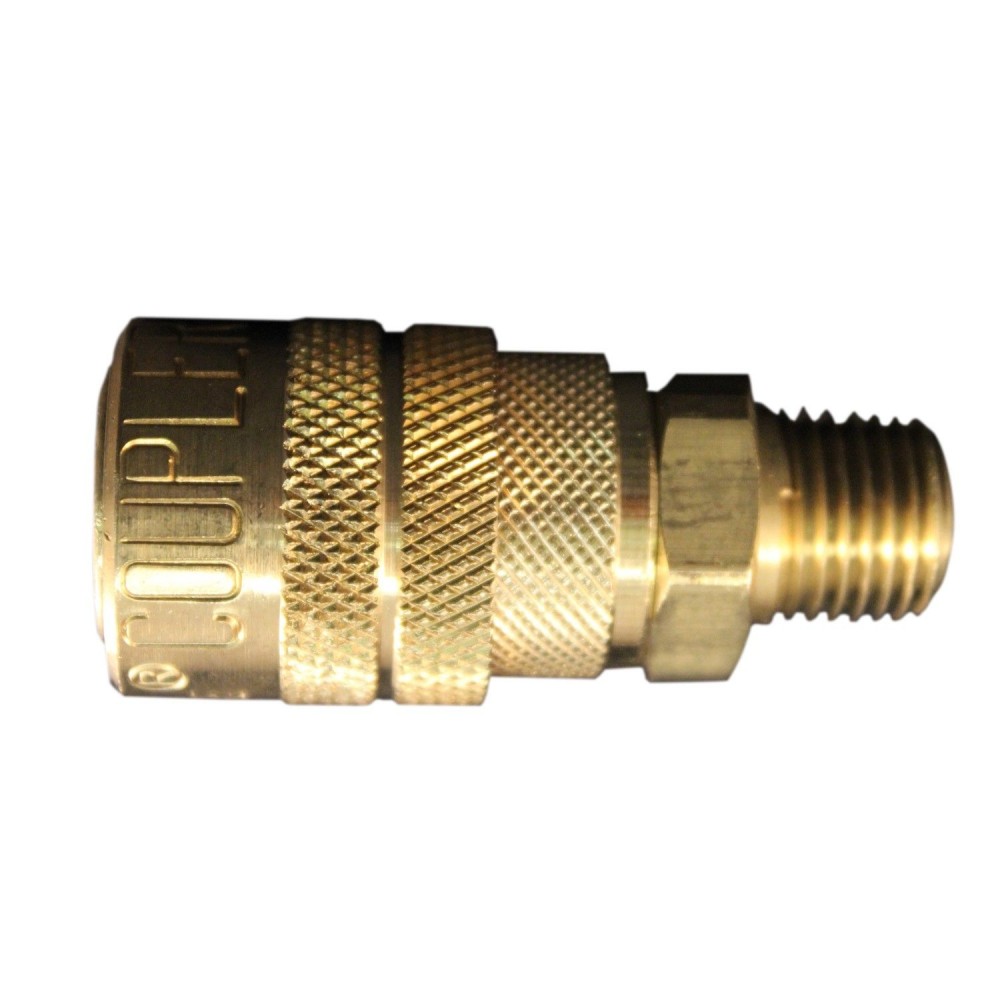

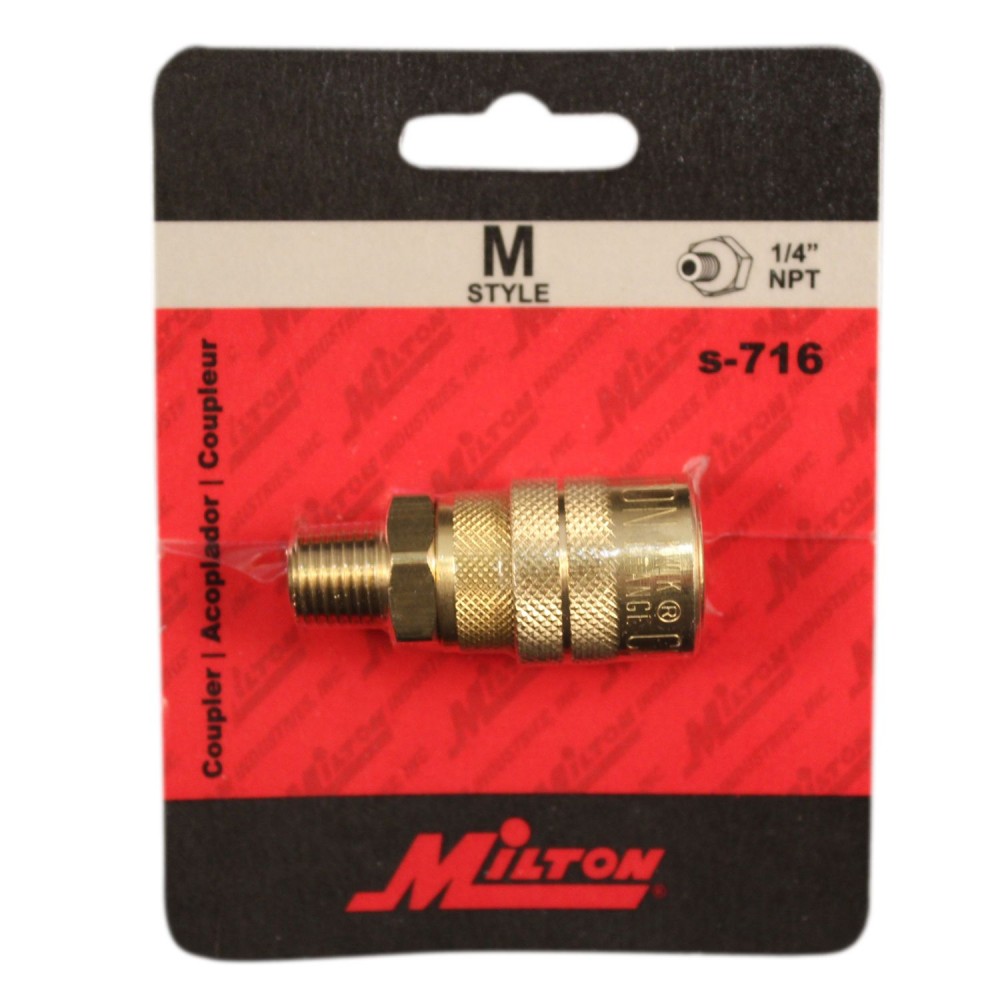

Milton (# S-716) 1/4 "MNPT Male M-Style KWIK-CHANGE® Coupler

Milton Industries is proud to be the creator and leader of the pneumatic industry standard M-Style coupler. This 1/4 "MNPT M style brass coupler has a 1/4" basic flow size, offering a maximum of 300 PSI. Comes with Buna-N seal and air flow of 40 SCFM. Both the body and sleeve are made of brass.

Milton M-Style Kwik Change couplers are made of brass, while M-Style Kwik Change plugs are made of case-hardened steel and are plated to resist rust. This collection of couplers and plugs:

- Offer a maximum airflow of 40 standard cubic feet per minute (except for select Push Button options).

- Offer a maximum of 300 pounds per square inch.

- Can withstand a max temperature of 250 degrees Fahrenheit.

M-STYLE: The industry standard coupler. Milton M-style, ColorFit M-style, + red competitor couplers / plugs are all compatible.

KWIK-CHANGE®: Interchangeable / compatible with most manufacturers. Easy push to connect.

NPT: 1/4 "male national pipe thread flow size. Durable brass. Buna-N seals.

MAXIMUM: 40 standard cubic feet per minute (SCFM). 300 PSI inlet pressure. Temperatures up to 250 degrees F.
