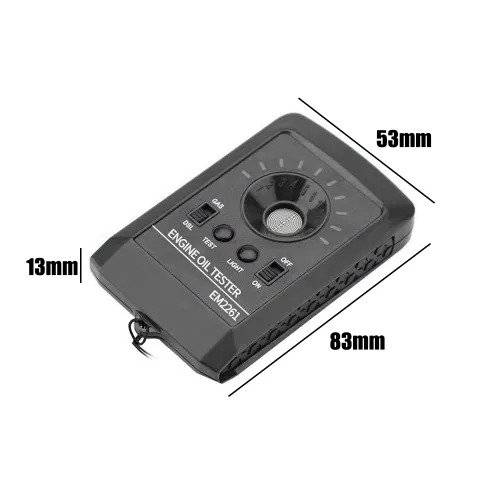

جهاز فحص زيت المحرك

جهاز يفحص حالة زيت المحرك و مدى صلاحيته للإستخدام ومدى وجود الشوائب والترسبات فيه

استخدام سهل يعمل مع زيوت محركات البنزين والديزل

Function of oil quality analysis:1. Analyze and judge the status of oil and equipment to provide maintenance recommendations.2. Oil quality test helps guard oil quality for both supply and demand, ensure the oil safety.3. Lubricants and new oil quality test help customers check and accept, prevent misuse of all kinds of unqualified and fake lubricants.4. Help the oil supply and demand clear both sides" responsibility in case of dispute.

Operating instructions:1. Flat the instrument. First choose the gas or diesel button (GAS: gasoline: DSL: diesel),after that, pressing the power button (ON), wait 5 seconds to see the green and red light on , then drip to the test tank. Finally press the test key (TEST) to start the test,Note: If only #10 light is on, you need to replace the battery. If the #7.8.9 lights flash alternately, the sensor is dirty, turn off the power and clean the sensor

2. Add a few drops test oil on the sensor, do not let the oil surface go beyond the test slot,Note: In order to obtain the best test result, the temperature had better been controlled in the range of 15-27 Celsius,3. Press the (TEST) key and release it quickly, the 10 lights will flash in sequence, and the last light will indicate the quality of the oil

Calibration method:1. Wipe the test slot, clean and place it on a smooth platform. Press the TEST key to start, about 1 second later,#6 LED flashes, enter the calibration mode.2. Release the button, about 5 seconds later, LED1 (green), LED6 (green) alternately flashes

indicating that the instrument is entering into the calibration process.3. Add the sample engine oil to the test slot and press the TEST button once. (Note that the liquid surface and groove edge level, and the middle of the liquid no obvious depression.)

Brand Name: ONE TOOL

Voltage: 3V

Model Name: OTO300
